Make Voice Calls by API

TThis documentation describes the simple webhook-style API used to initiate a single voice call without needing to set up a campaign first.

Endpoint

Method	URL	Description
POST	https://campaigns.crm-messaging.cloud/api/voice-call	Initiates a single voice call.

---

Authentication

Authenticate your request by including your CRM Messaging Token in the Authorization header using the Bearer scheme.

Authorization: Bearer YOUR_CRM_TOKEN

---

Request Body

The request body is a JSON object containing the call parameters.

JSON

{
  "toNumber": "917388489036",
  "fromNumber": "13024878460",
  "content": "Hello Natrajan Jaiswal this is a test call, how are you? If you want to talk to me, drop a message",
  "messageType": "text",
  "voice": "Polly.Joanna"
}

Request Body Fields

Field	Type	Required	Description
toNumber	string	Yes	The phone number to call (e.g., "917388489036").
fromNumber	string	Yes	Your sender phone number, which must be associated with your account (e.g., "13024878460").
content	string	Conditional	The text content to be converted to speech. Required if messageType is "text".
messageType	string	Yes	Specifies the call content type: either "text" (Text-to-Speech) or "audio" (Audio Playback). Defaults to "text".
voice	string	No	The specific AWS Polly voice to use for Text-to-Speech (defaults to "Polly.Joanna").
audioUrl	string	Conditional	A publicly accessible URL of the audio file to play. Required if messageType is "audio".

Examples

Example 1: Text-to-Speech Call (Default)

Bash

curl -X POST https://campaigns.crm-messaging.cloud/api/voice-call \
  -H "Authorization: Bearer YOUR_CRM_TOKEN" \
  -H "Content-Type: application/json" \
  -d '{
    "toNumber": "917388489036",
    "fromNumber": "13024878460",
    "content": "Hello, this is a test call from CRM Messaging.",
    "messageType": "text",
    "voice": "Polly.Joanna"
  }'

Example 2: Audio File Playback Call

Bash

curl -X POST https://campaigns.crm-messaging.cloud/api/voice-call \
  -H "Authorization: Bearer YOUR_CRM_TOKEN" \
  -H "Content-Type: application/json" \
  -d '{
    "toNumber": "917388489036",
    "fromNumber": "13024878460",
    "messageType": "audio",
    "audioUrl": "https://example.com/audio.mp3"
  }'

---

Responses

Success Response

A successful request confirms the call initiation. Final call status and recordings are sent via webhooks.

JSON

{
  "success": true,
  "message": "Voice call initiated successfully",
  "data": {
    "messageId": "693c12afbab4b9f59fe36bf4",
    "callId": "CA1234567890abcdef",
    "toNumber": "917388489036",
    "fromNumber": "13024878460",
    "status": "sent",
    "callStatus": "queued"
  }
}

Error Responses

HTTP Status	Scenario	Example JSON Response
400 Bad Request	Missing Required Field	{"success": false, "message": "toNumber is required"}
403 Forbidden	Sender Not Found	{"success": false, "message": "Sender not found for number: 13024878460"}
500 Internal Server Error	Provider Not Found	{"success": false, "message": "Provider details not found for the sender number"}
500 Internal Server Error	Call Failed	{"success": false, "message": "Failed to make voice call", "error": "Error message details"}

---

Postman Setup Guide

1. Method: POST
2. URL: https://campaigns.crm-messaging.cloud/api/voice-call
3. Headers:
   • Key: Authorization | Value: Bearer YOUR_CRM_TOKEN
   • Key: Content-Type | Value: application/json
4. Body (raw JSON):JSON{ "toNumber": "917388489036", "fromNumber": "13024878460", "content": "Hello, this is a test call from Postman.", "messageType": "text", "voice": "Polly.Joanna" }

---

Available Voices (AWS Polly)

The voice parameter allows you to select a specific Text-to-Speech voice. The default is Polly.Joanna.

• Polly.Joanna (Default)
• Polly.Matthew
• Polly.Amy
• Polly.Brian
• Polly.Emma
• Polly.Joey
• Polly.Justin
• Polly.Kendra
• Polly.Kimberly
• Polly.Salli
• And many more…

---

Key Features and Webhooks

Feature	Description
API Method	Makes a single call per API request.
Campaign-Free	Direct call initiation without prior campaign setup.
Record Tracking	Creates a Message record in the database for tracking purposes.
Auth	Uses your existing CRM Messaging token for authorization.
Text-to-Speech	Converts text to voice using AWS Polly.
Audio Playback	Supports playing audio files from a specified public URL.
Status	Tracks call status (e.g., queued, in-progress, completed) via webhooks.
Recording	All calls are automatically recorded.

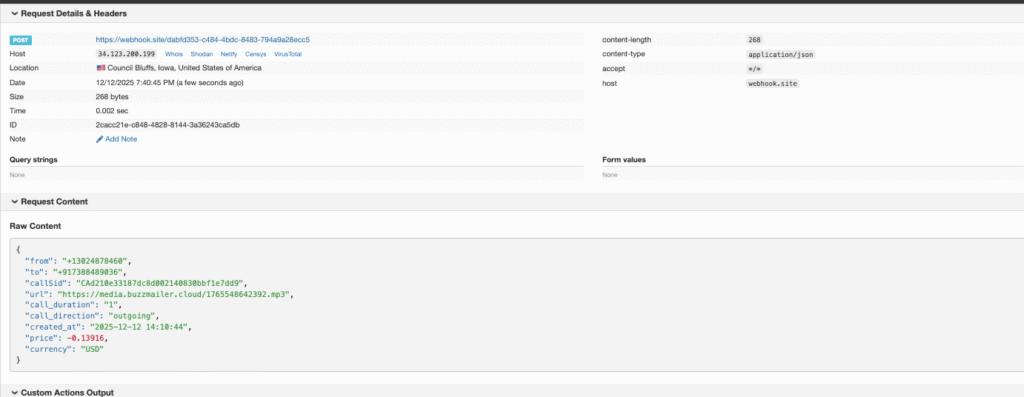

Important Notes on Webhooks

To receive call status updates and the URLs for call recordings, you must configure your external endpoint within the developer console.

• Configuration Path: Developer Console -> Update Callback URL -> Voice Logs URL
• Data Received: Your configured URL will receive detailed information about the call’s final status and the link to the call recording.
